M9900

Product features

•

  Multi-pin plug Separating the control unit and cable harness using a multi-pin plug means the control unit can be replaced without the need for time-consuming complete removal. Multi-pin plugs for waterproof devices are similarly waterproof.
•

  Acid-proof, self-extinguishing plastic The device is resistant to acids (e.g. batteries or cleaning agents) and the plastic used meets automotive industry safety standards.
•

  Bonnet safety switch The specially developed bonnet switch (item no. 1001) immediately discharges the high voltage current on the contact plates as soon as the bonnet is opened. Active intervention/deactivation is no longer necessary. This means greater safety for vehicle owners/installers and is no problem for K&K devices, as their power consumption automatically reduces in the event of a short circuit.
•

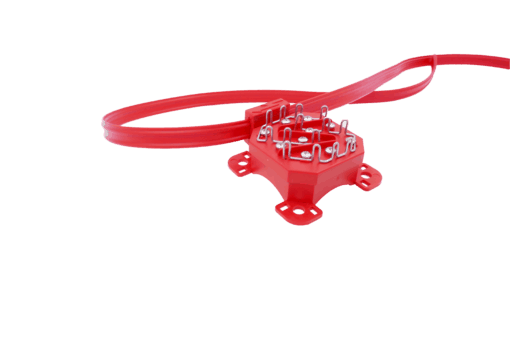

  Multi-contact high-voltage brushes Multi-contact brushes run through the insulating fur and (along with the paws and snout) the active surface is increased by the skin itself, making it many times bigger. They can also be installed in any environment.
•

  High voltage (electric fence principle) “Those who cannot hear must feel!” Older martens (with impaired hearing) or very aggressive animals (territory battles) can sometimes only be driven off by electric shocks.
•

  E1 mark The E-1 sign confirms that the device has been tested by the Federal Motor Transport Authority (KBA).
•

  CAN bus The electronics of modern vehicles communicate internally via a so-called CAN bus. Even in this environment, our devices can operate without any difficulty.
•

  Sleep mode The integrated sleep mode of the activation sensors, takes the AA batteries only on contact and "slumbers" the rest of the time.
•

  Waterproof Waterproof encapsulated electronics and - for devices with ultrasound - a completely sealed loudspeaker enable deep installation even in splash water areas. Even motor washes are no problem.
•

  Autonomous battery device (M9900) Battery power allows high-voltage devices to be operated completely independently of the vehicle’s electrical system. This is particularly use for motorhomes, classic cars, etc. that have long service lives.
•

  E-& plug-in hybrid recommended Ideally suited for all engine generations: This marten repeller works independently and is therefore independent of the on-board network. This is particularly recommended for electrically powered vehicles.
•

  Reminder-App The smart reminder app reminds you in time to replace the batteries or refresh your fragrance protection. www.kuk-reminder.com

Technical data

Accessories

Installation

Mount the control unit in a place where it cannot overheat. Observe the manufacturer’s operating temperature regarding the batteries. The battery compartment  and connector holder should be mounted so that they can be easily accessed. The bonnet switch prevents the possibility of a voltage build-up when the bonnet is open. During the assembly, make sure that the eyelet  is placed under the fastening bracket and tightened with the _xing screw  so that it can allow electrical conduction with the contacting surface under the mounting bracket of the switch. Raise the contact brushes  onto the high-voltage cable  and lay this in a strategic location in the engine compartment. Contact brush positions should be adapted to the conditions of the engine compartment (secure entry points, routes and bite-endangered areas) . The high-voltage cable should not be placed anywhere near hot and/or rotating engine parts . Contact brushes should be mounted at a minimum distance of 10mm to other conductive parts (short-circuit hazard) and at an angle (water drainage). Fasten the contact brushes with cable ties

Please attach the yellow warning sticker ‘Warning high voltage’  so it can be clearly seen in the engine compartment !

For further information please refer to the installation PDF.

Additional documentation

• Download
  PDF
